Solver#
The rateslib.solver module includes a Solver class
which iteratively solves for the parameters of pricings objects (Curves, Smiles,
and Surfaces), to fit the given market data of
calibrating Instruments.
This module relies on the utility module dual for gradient based optimization.
|
A numerical solver to determine node values on multiple pricing objects simultaneously. |
Parameters#
The Solver solves the following least squares
objective function:
where \(\mathbf{S}\) are the known calibrating instrument rates, \(\mathbf{r}\) are the determined instrument rates based on the solved parameters, \(\mathbf{v}\), and \(\mathbf{W}\) is a diagonal matrix of weights.
Each Curve type has the following parameters:
Parameter |
Type |
Summary |
Affected by |
|---|---|---|---|
|
Parameters |
The explicit values associated with node dates. |
|
|
Hyper parameter |
Equation or mechanism to determine intermediate values not defined explicitly
by |
No |
|
Hyper parameters |
Fixed points which implicitly impact the interpolated values across the curve. |
No |
|
Hyper parameters |
Framework for defining the (log) cubic spline structure which implicitly impacts the interpolated values across the curve. |
No |
|
Hyper parameters |
Method used to control spline curves on the left and right boundaries. |
No |
Each Smile type has the following parameters:
Parameter |
Type |
Summary |
Affected by |
|---|---|---|---|
|
Parameters |
The explicit values associated with node delta indexes or SABR indexes. |
Yes.
For
FXDeltaVolSmile node values are varied.For
FXSabrSmile the parameters “alpha”, “rho” and “nu” are varied whilst “beta” is held constant. |
|
Hyper parameter |
Only relevant to DeltaVolSmile |
No |
Surfaces are containers for multiple Smiles and the above is applied.
Calibrating Pricing Objects#
Thus, in order to calibrate, or solve, pricing objects the hyper parameters must already
be defined. This will be true once the objects are initialized and passed to the
Solver.
The nodes values (the parameters) should be initialised with sensible values
from which the optimizer will start. However, it is usually quite robust and should
be able to solve from a variety of initialised node values. But in the case of failure,
this is often due to poorly chosen starting values and a successful solution may still
be obtained with initial values set closer to target.
We define a simple Curve using default hyper parameters
and only a few nodes.
In [1]: ll_curve = Curve(
...: nodes={
...: dt(2022,1,1): 1.0,
...: dt(2023,1,1): 0.99,
...: dt(2024,1,1): 0.979,
...: dt(2025,1,3): 0.967
...: },
...: id="curve",
...: )
...:
Next, we must define the instruments which will instruct the solution.
In [2]: instruments = [
...: IRS(dt(2022, 1, 1), "1Y", "A", curves="curve"),
...: IRS(dt(2022, 1, 1), "2Y", "A", curves="curve"),
...: IRS(dt(2022, 1, 1), "3Y", "A", curves="curve"),
...: ]
...:
There are a number of different mechanisms for the way in which this can be done, but the example here reflects best practice as demonstrated in pricing mechanisms.
Once a suitable, and valid, set of instruments has been configured we can supply it,
and the curves, to the solver. We must also supply some target rates, s, and
the optimizer will update the curves.
In [3]: solver = Solver(
...: curves = [ll_curve],
...: instruments = instruments,
...: s = [1.0, 1.6, 2.0],
...: )
...:
SUCCESS: `func_tol` reached after 4 iterations (levenberg_marquardt), `f_val`: 9.549288083712273e-14, `time`: 0.0054s

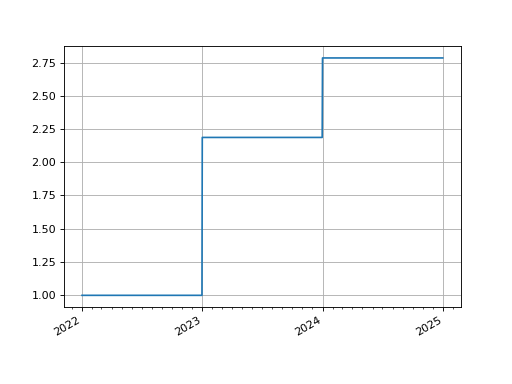

In [4]: ll_curve.plot("1D")
Out[4]:
(<Figure size 640x480 with 1 Axes>,
<Axes: >,
[<matplotlib.lines.Line2D at 0x11a8f02d0>])
(Source code, png, hires.png, pdf)
The values of the solver.s can be updated and the curves can be redetermined
In [5]: print(instruments[1].rate(ll_curve).real)
1.5999999997080336
In [6]: solver.s[1] = 1.5
In [7]: solver.iterate()
SUCCESS: `func_tol` reached after 3 iterations (levenberg_marquardt), `f_val`: 1.6299982557749375e-12, `time`: 0.0040s
In [8]: print(instruments[1].rate(ll_curve).real)
1.500001236890998
Changing the hyper parameters of a curve does not require any fundamental
change to the input arguments to the Solver.
Here a mixed interpolation scheme is used and the Curve
calibrated.
In [9]: mixed_curve = Curve(
...: nodes={
...: dt(2022,1,1): 1.0,
...: dt(2023,1,1): 0.99,
...: dt(2024,1,1): 0.965,
...: dt(2025,1,3): 0.93,
...: },
...: interpolation="log_linear",
...: t = [dt(2023,1,1), dt(2023,1,1), dt(2023,1,1), dt(2023,1,1), dt(2024,1,1), dt(2025,1,3), dt(2025,1,3), dt(2025,1,3), dt(2025,1,3)],
...: id="curve",
...: )
...:
In [10]: solver = Solver(
....: curves = [mixed_curve],
....: instruments = instruments,
....: s = [1.0, 1.5, 2.0],
....: )
....:
SUCCESS: `func_tol` reached after 4 iterations (levenberg_marquardt), `f_val`: 2.0488787156020367e-14, `time`: 0.0053s

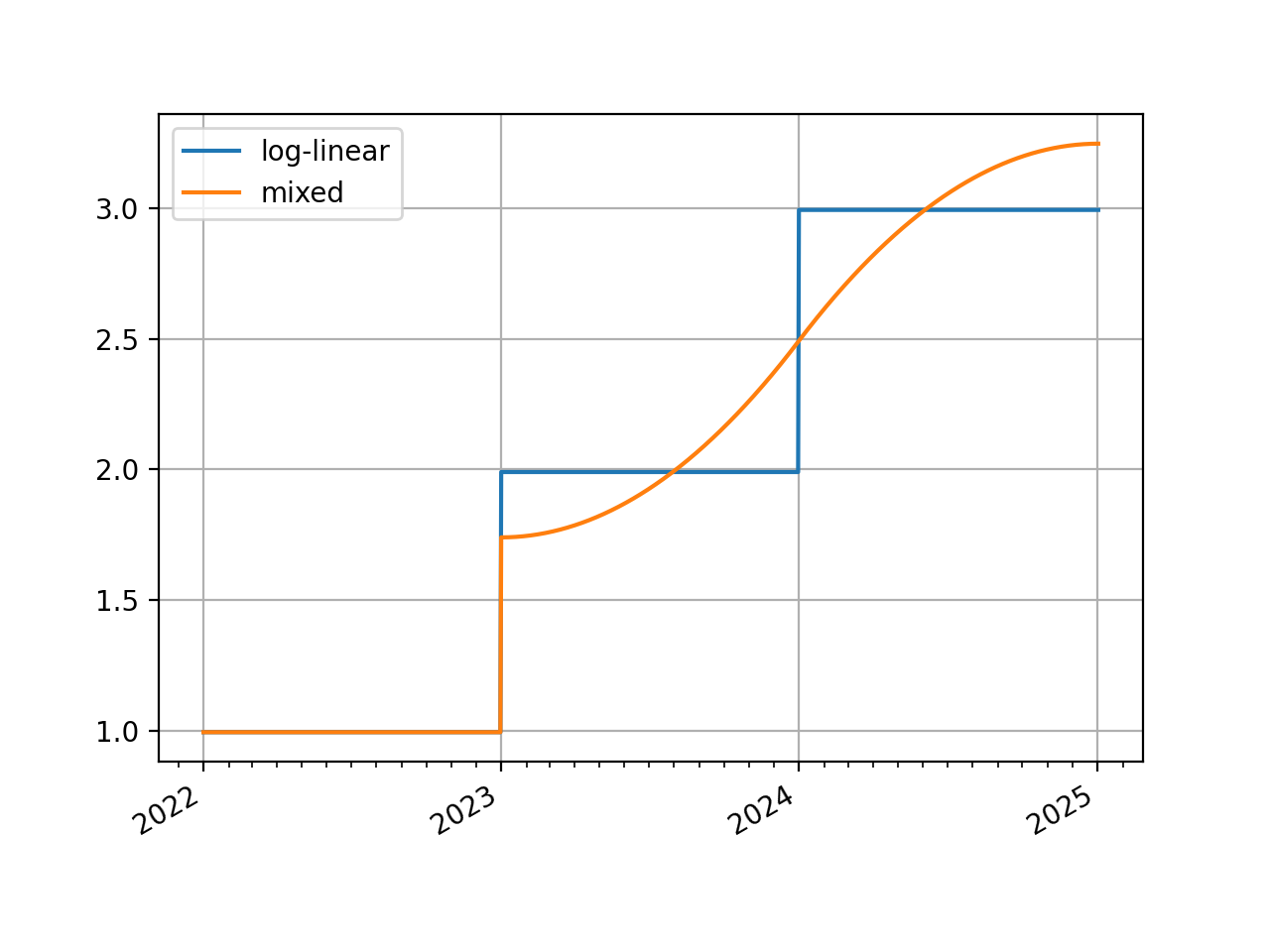

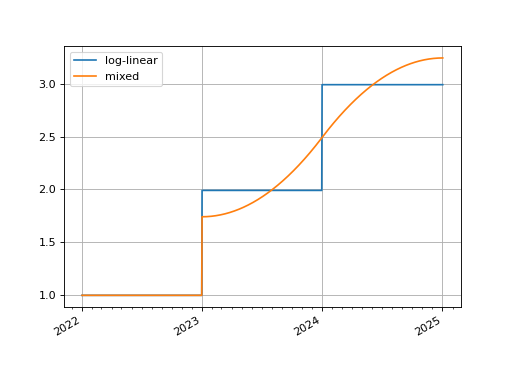

In [11]: ll_curve.plot("1D", comparators=[mixed_curve], labels=["log-linear", "mixed"])
Out[11]:
(<Figure size 640x480 with 1 Axes>,
<Axes: >,
[<matplotlib.lines.Line2D at 0x11acbc690>,
<matplotlib.lines.Line2D at 0x11acbc7d0>])
(Source code, png, hires.png, pdf)
Algorithms#
In the defaults settings of rateslib, Solver uses
a “levenberg_marquardt” algorithm.
There is an option to use a “gauss_newton” algorithm which is faster if the initial guess is reasonable. This should be used where possible, but this is a more unstable algorithm (initial guesses more likely to lead to failure) so is not set as the default.
For other debugging procedures the “gradient_descent” method is available although this is not recommended due to computational inefficiency.
Details on these algorithms are provided in the rateslib
supplementary materials.
Weights#
The argument weights allows certain instrument rates to be targeted with
greater priority than others. In the above examples this was of no relevance since
in all previous cases the minimum solution of zero was fully attainable.
The following pathological example, where the same instruments are provided multiple times with different rates, shows the effect. In the first case the lower rates are targeted more heavily, and in the second case the higher rates are targeted for the same Instrument.
In [12]: instruments = [
....: IRS(dt(2022, 1, 1), "1Y", "A", curves="curve"),
....: IRS(dt(2022, 1, 1), "2Y", "A", curves="curve"),
....: IRS(dt(2022, 1, 1), "3Y", "A", curves="curve"),
....: IRS(dt(2022, 1, 1), "1Y", "A", curves="curve"),
....: IRS(dt(2022, 1, 1), "2Y", "A", curves="curve"),
....: IRS(dt(2022, 1, 1), "3Y", "A", curves="curve"),
....: ]
....:
In [13]: solver = Solver(
....: curves = [mixed_curve],
....: instruments = instruments,
....: s = [1.0, 1.1, 1.2, 5.0, 5.1, 5.2],
....: weights = [1, 1, 1, 1e-4, 1e-4, 1e-4],
....: )
....:
SUCCESS: `conv_tol` reached after 7 iterations (levenberg_marquardt), `f_val`: 0.0047995200479952005, `time`: 0.0132s
In [14]: for instrument in instruments:
....: print(float(instrument.rate(solver=solver)))
....:
1.0003999600039903
1.1003999600039887
1.200399960003984
1.0003999600039903
1.1003999600039887
1.200399960003984
In [15]: solver = Solver(
....: curves = [mixed_curve],
....: instruments = instruments,
....: s = [1.0, 1.1, 1.2, 5.0, 5.1, 5.2],
....: weights = [1e-4, 1e-4, 1e-4, 1, 1, 1],
....: )
....:
FAILURE: `max_iter` breached after 100 iterations (levenberg_marquardt), `f_val`: 0.0047995200479952005, `time`: 0.1674s
In [16]: for instrument in instruments:
....: print(float(instrument.rate(solver=solver)))
....:
4.999600039996006
5.099600039996002
5.199600039996004
4.999600039996006
5.099600039996002
5.199600039996004
Dependency Chains#
In real fixed income trading environments every curve should be synchronous and
dependencies should use the same construction method in one division as in another.
The pre_solvers argument allows a chain of Solver s.
Here a SOFR curve is constructed via a solver and is then added to another solver
which solves an ESTR curve. There is no technical dependence here of one on the
other so these solvers could be arranged in either order.
In [17]: sofr_curve = Curve(
....: nodes={
....: dt(2022, 1, 1): 1.0,
....: dt(2023, 1, 1): 1.0,
....: dt(2024, 1, 1): 1.0,
....: dt(2025, 1, 1): 1.0,
....: },
....: id="sofr",
....: )
....:
In [18]: sofr_instruments = [
....: IRS(dt(2022, 1, 1), "1Y", "A", currency="usd", curves="sofr"),
....: IRS(dt(2022, 1, 1), "2Y", "A", currency="usd", curves="sofr"),
....: IRS(dt(2022, 1, 1), "3Y", "A", currency="usd", curves="sofr"),
....: ]
....:
In [19]: sofr_solver = Solver(
....: curves = [sofr_curve],
....: instruments = sofr_instruments,
....: s = [2.5, 3.0, 3.5],
....: )
....:
SUCCESS: `func_tol` reached after 4 iterations (levenberg_marquardt), `f_val`: 4.659124754473029e-13, `time`: 0.0051s
In [20]: estr_curve = Curve(
....: nodes={
....: dt(2022, 1, 1): 1.0,
....: dt(2023, 1, 1): 1.0,
....: dt(2024, 1, 1): 1.0,
....: dt(2025, 1, 1): 1.0,
....: },
....: id="estr",
....: )
....:
In [21]: estr_instruments = [
....: IRS(dt(2022, 1, 1), "1Y", "A", currency="eur", curves="estr"),
....: IRS(dt(2022, 1, 1), "2Y", "A", currency="eur", curves="estr"),
....: IRS(dt(2022, 1, 1), "3Y", "A", currency="eur", curves="estr"),
....: ]
....:
In [22]: estr_solver = Solver(
....: curves = [estr_curve],
....: instruments = estr_instruments,
....: s = [1.25, 1.5, 1.75],
....: pre_solvers=[sofr_solver]
....: )
....:
SUCCESS: `func_tol` reached after 4 iterations (levenberg_marquardt), `f_val`: 3.1986237566494413e-13, `time`: 0.0054s
It is possible to create only a single solver using the two curves and six instruments above. However, in practice it is less efficient to solve independent solvers within the same framework. And practically, this is not usually how trading teams are configured, all as one big group. Normally siloed teams are responsible for their own subsections, be it one currency or another, or different product types.
Multi-Currency Instruments#
Multi-currency derivatives rely on FXForwards. In this
example we establish a new cash-collateral discount curve and use
XCS within a Solver.
In [23]: eurusd = Curve(
....: nodes={
....: dt(2022, 1, 1): 1.0,
....: dt(2023, 1, 1): 1.0,
....: dt(2024, 1, 1): 1.0,
....: dt(2025, 1, 1): 1.0,
....: },
....: id="eurusd",
....: )
....:
In [24]: fxr = FXRates({"eurusd": 1.10}, settlement=dt(2022, 1, 3))
In [25]: fxf = FXForwards(
....: fx_rates=fxr,
....: fx_curves={
....: "eureur": estr_curve,
....: "eurusd": eurusd,
....: "usdusd": sofr_curve,
....: }
....: )
....:
In [26]: kwargs={
....: "currency": "eur",
....: "leg2_currency": "usd",
....: "curves": ["estr", "eurusd", "sofr", "sofr"],
....: }
....:
In [27]: xcs_instruments = [
....: XCS(dt(2022, 1, 1), "1Y", "A", **kwargs),
....: XCS(dt(2022, 1, 1), "2Y", "A", **kwargs),
....: XCS(dt(2022, 1, 1), "3Y", "A", **kwargs),
....: ]
....:
In [28]: xcs_solver = Solver(
....: curves = [eurusd],
....: instruments = xcs_instruments,
....: s = [-10, -15, -20],
....: fx=fxf,
....: pre_solvers=[estr_solver],
....: )
....:
SUCCESS: `func_tol` reached after 3 iterations (levenberg_marquardt), `f_val`: 3.0042493839090535e-17, `time`: 0.0259s

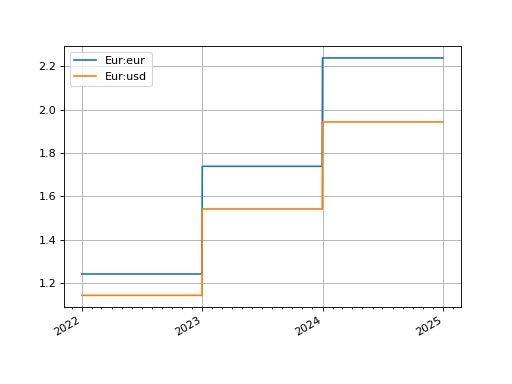

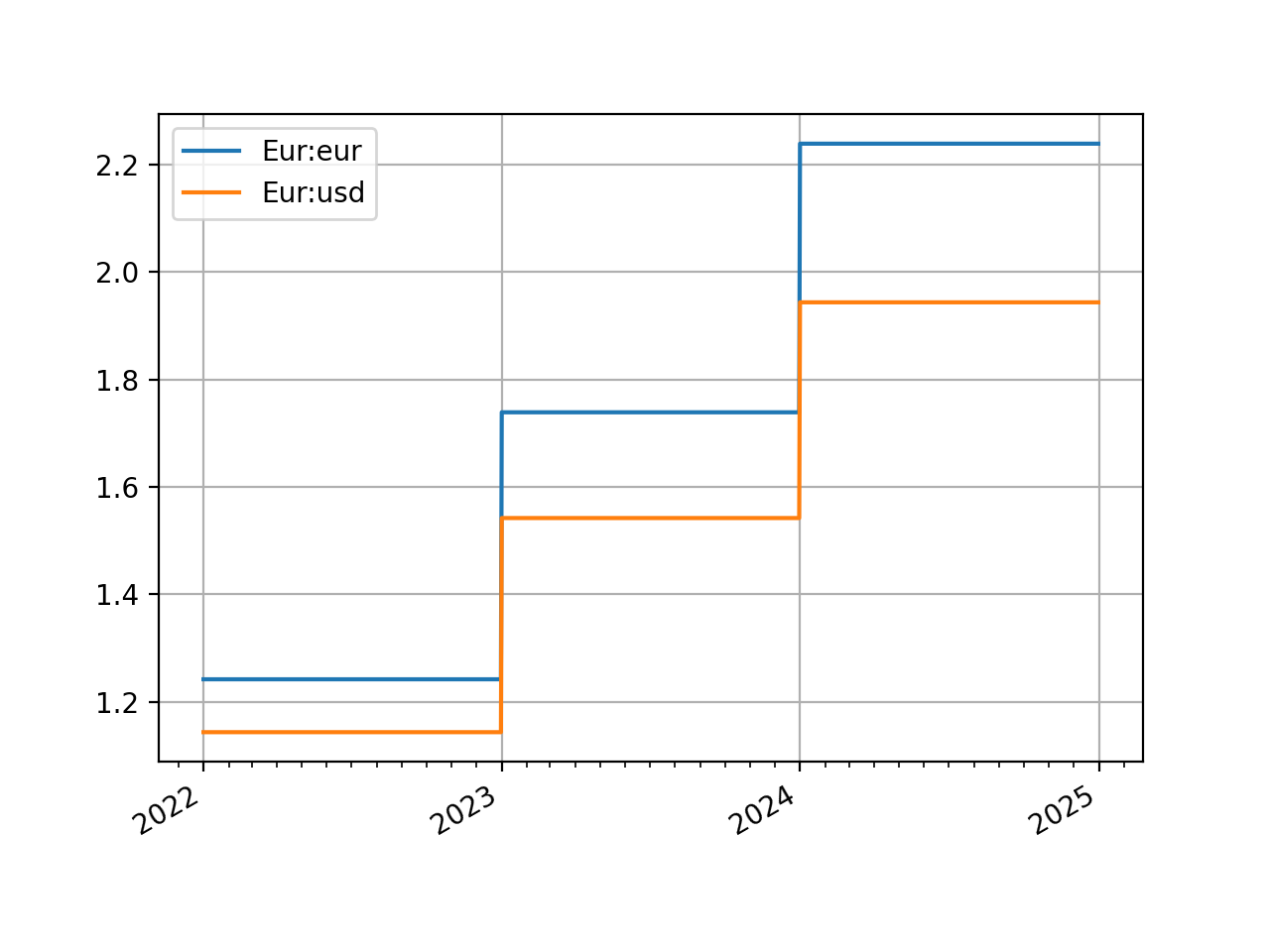

In [29]: estr_curve.plot("1d", comparators=[eurusd], labels=["Eur:eur", "Eur:usd"])
Out[29]:
(<Figure size 640x480 with 1 Axes>,
<Axes: >,
[<matplotlib.lines.Line2D at 0x11afa1a90>,
<matplotlib.lines.Line2D at 0x11afa1bd0>])
(Source code, png, hires.png, pdf)
Calibration Instrument Error#
Depending upon the hyper parameters, parameters and calibrating instrument choices, the optimized solution may well lead to curves that do not completely reprice the calibrating instruments. Sometimes this is representative of errors in the construction process, and at other times this is completely desirable.
When the Solver is initialised and iterates it will print
an output to console indicating a success or failure and the value of the
objective function. If this value is very small, that already indicates that there is
no error in any instruments. However for cases where the curve is over-specified, error
is to be expected.
In [30]: solver_with_error = Solver(
....: curves=[
....: Curve(
....: nodes={dt(2022, 1, 1): 1.0, dt(2022, 7, 1): 1.0, dt(2023, 1, 1): 1.0},
....: id="curve1"
....: )
....: ],
....: instruments=[
....: IRS(dt(2022, 1, 1), "1M", "A", curves="curve1"),
....: IRS(dt(2022, 1, 1), "2M", "A", curves="curve1"),
....: IRS(dt(2022, 1, 1), "3M", "A", curves="curve1"),
....: IRS(dt(2022, 1, 1), "4M", "A", curves="curve1"),
....: IRS(dt(2022, 1, 1), "8M", "A", curves="curve1"),
....: IRS(dt(2022, 1, 1), "12M", "A", curves="curve1"),
....: ],
....: s=[2.0, 2.2, 2.3, 2.4, 2.45, 2.55],
....: instrument_labels=["1m", "2m", "3m", "4m", "8m", "12m"],
....: )
....:
SUCCESS: `conv_tol` reached after 4 iterations (levenberg_marquardt), `f_val`: 0.08763280492897038, `time`: 0.0074s
In [31]: solver_with_error.error
Out[31]:
7b823_ 1m 22.80
2m 2.99
3m -6.79
4m -16.59
8m -4.59
12m 2.30
dtype: float64
Composite, Proxy and Multi-CSA Curves#
CompositeCurve, ProxyCurve and
MultiCsaCurve do not
have their own parameters. These rely on the parameters from other fundamental curves.
It is possible to create a Solver defined with Instruments that reference these
complex curves as pricing curves with the Solver updating the underlying
parameters of the fundamental curves.
This does not require much additional configuration, it simply requires ensuring all necessary curves are documented.
Below we will calculate a EUR IRS defined by a CompositeCurve and a Curve,
a USD IRS defined just by a Curve, and then create an FXForwards
defined with USD collateral, but calibrate a solver by
XCS instruments priced with EUR collateral.
In [32]: eureur = Curve({dt(2022, 1, 1): 1.0, dt(2023, 1, 1): 1.0}, id="eureur")
In [33]: eurspd = Curve({dt(2022, 1, 1): 1.0, dt(2023, 1, 1): 0.999}, id="eurspd")
In [34]: eur3m = CompositeCurve([eureur, eurspd], id="eur3m")
In [35]: usdusd = Curve({dt(2022, 1, 1): 1.0, dt(2023, 1, 1): 1.0}, id="usdusd")
In [36]: eurusd = Curve({dt(2022, 1, 1): 1.0, dt(2023, 1, 1): 1.0}, id="eurusd")
In [37]: fxr = FXRates({"eurusd": 1.1}, settlement=dt(2022, 1, 3))
In [38]: fxf = FXForwards(
....: fx_rates=fxr,
....: fx_curves={
....: "eureur": eureur,
....: "usdusd": usdusd,
....: "eurusd": eurusd,
....: }
....: )
....:
In [39]: usdeur = fxf.curve("usd", "eur", id="usdeur")
In [40]: instruments = [
....: IRS(dt(2022, 1, 1), "1Y", "A", currency="eur", curves=["eur3m", "eureur"]),
....: IRS(dt(2022, 1, 1), "1Y", "A", currency="usd", curves="usdusd"),
....: XCS(dt(2022, 1, 1), "1Y", "A", currency="eur", leg2_currency="usd", curves=["eureur", "eureur", "usdusd", "usdeur"]),
....: ]
....:
In [41]: solver = Solver(curves=[eureur, eur3m, usdusd, eurusd, usdeur], instruments=instruments, s=[2.0, 2.7, -15], fx=fxf)
SUCCESS: `func_tol` reached after 3 iterations (levenberg_marquardt), `f_val`: 3.739414246996899e-12, `time`: 0.0116s
We can plot all five curves defined above by the 3 fundamental curves, ‘eureur’, ‘usdusd’, ‘eurusd’.

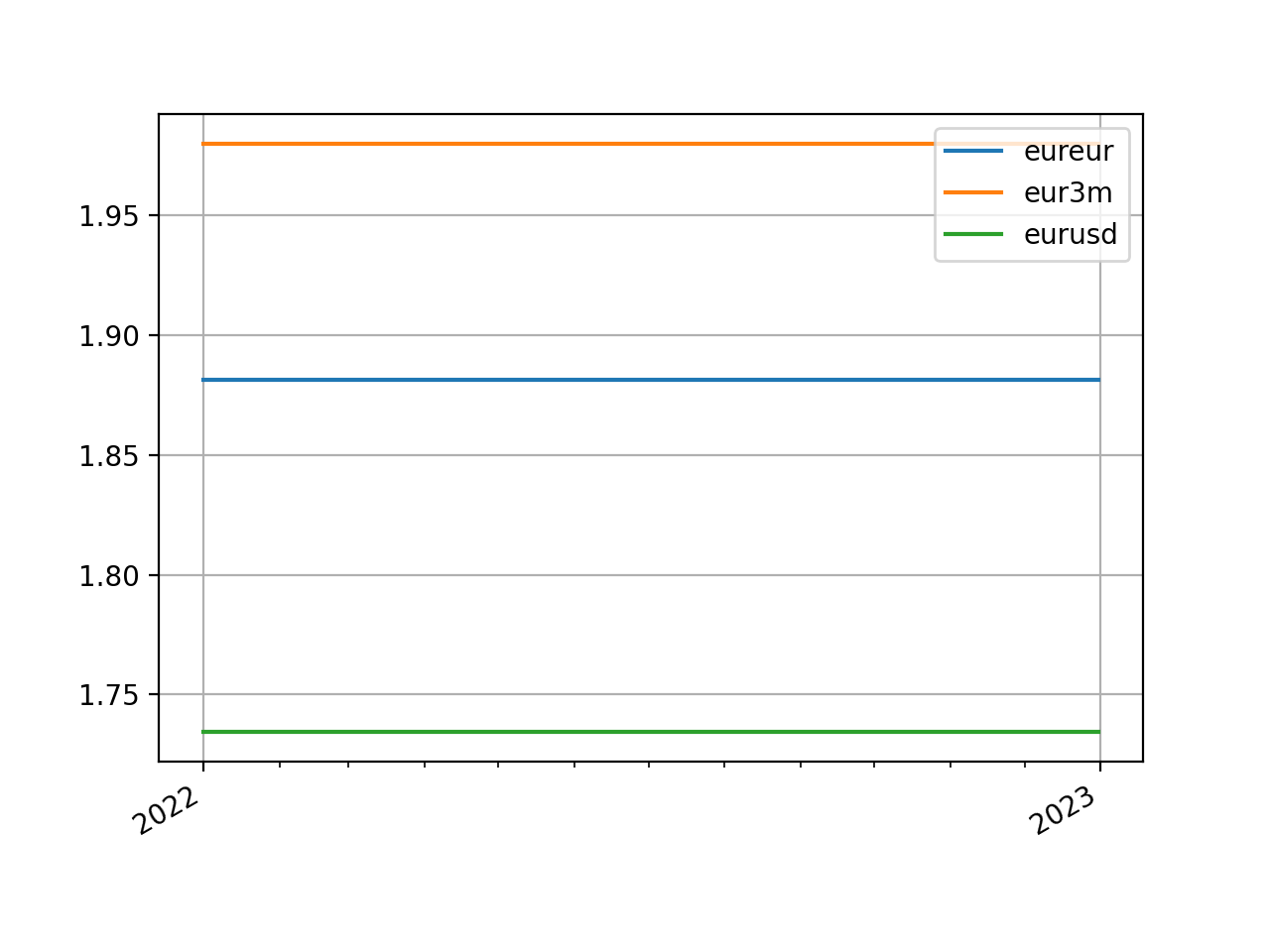

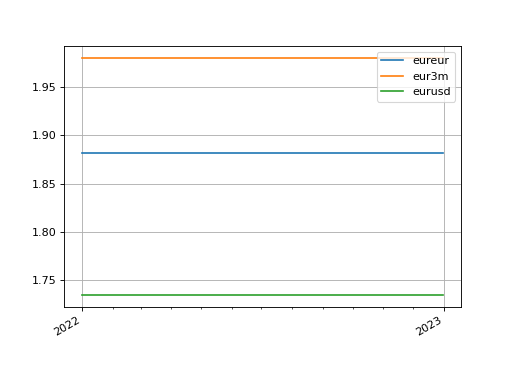

In [42]: eureur.plot("1d", comparators=[eur3m, eurusd], labels=["eureur", "eur3m", "eurusd"])
Out[42]:
(<Figure size 640x480 with 1 Axes>,
<Axes: >,
[<matplotlib.lines.Line2D at 0x11b208410>,
<matplotlib.lines.Line2D at 0x11b2082d0>,
<matplotlib.lines.Line2D at 0x11b208190>])

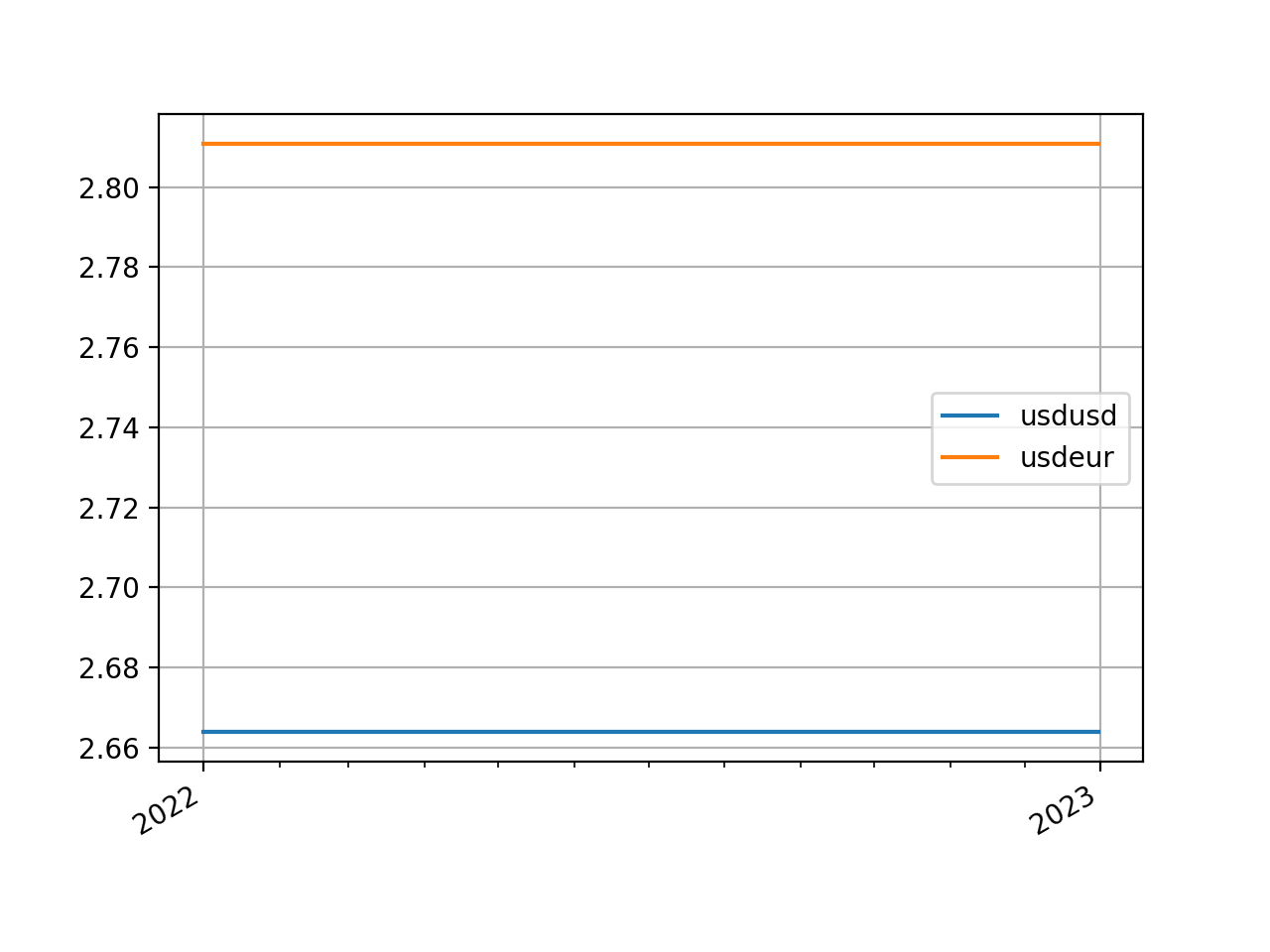

In [43]: usdusd.plot("1d", comparators=[usdeur], labels=["usdusd", "usdeur"])
Out[43]:
(<Figure size 640x480 with 1 Axes>,
<Axes: >,
[<matplotlib.lines.Line2D at 0x11b1e3750>,
<matplotlib.lines.Line2D at 0x11b1e3890>])
(Source code, png, hires.png, pdf)
(Source code, png, hires.png, pdf)
